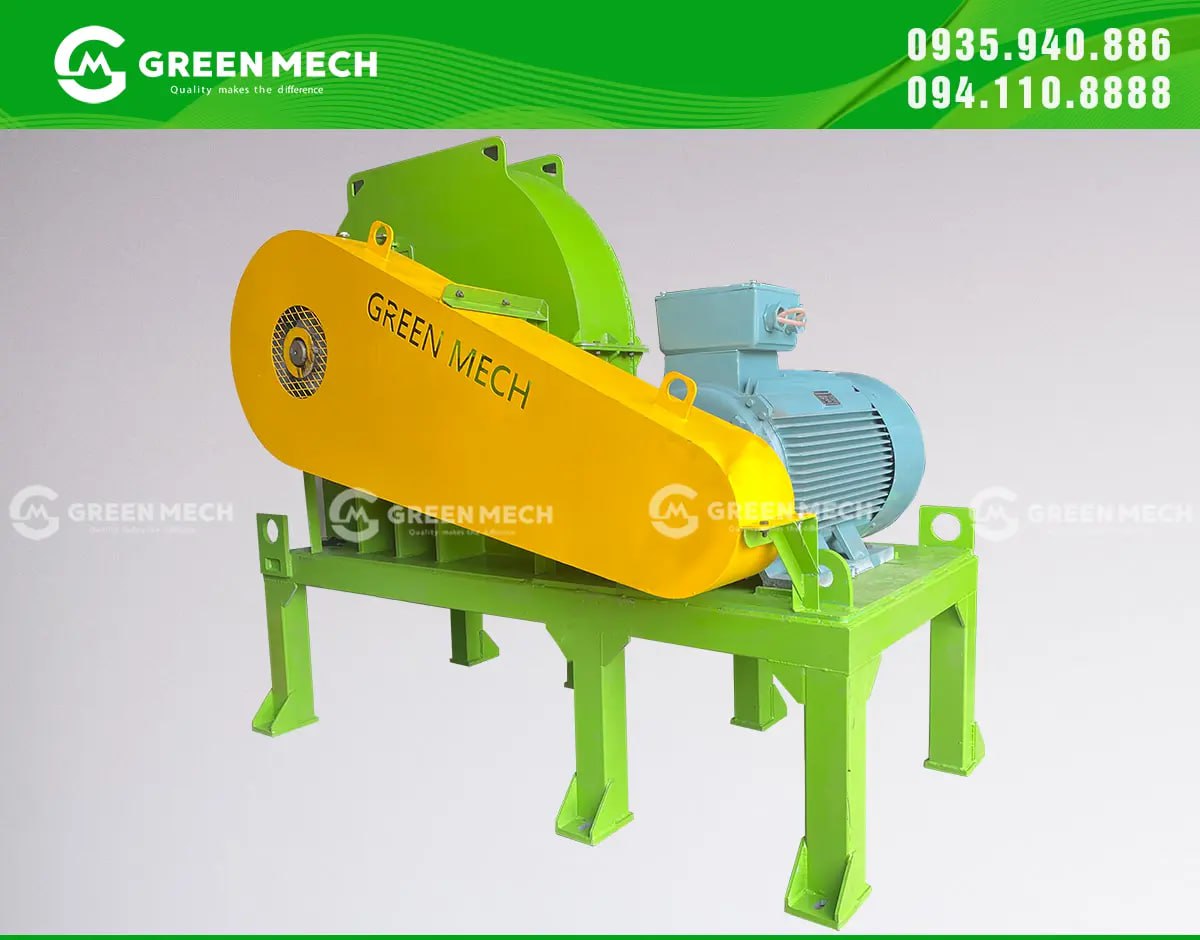

20-ton horizontal throat wood chipper – Optimized horizontal feeding design for logs and roundwood.
900 ₫
A very practical advantage of the 20-ton horizontal throat wood chipper is that it doesn’t require a pit like vertical feed chippers with bottom discharge. Thanks to its horizontal feed design, the machine can be placed directly on the factory floor, saving construction costs, shortening installation time, and making operation easier. This is especially suitable for factories that utilize existing space or want to optimize initial investment.
A very practical advantage of the 20-ton horizontal throat wood chipper is that it doesn’t require a pit like vertical feed chippers with bottom discharge. Thanks to its horizontal feed design, the machine can be placed directly on the factory floor, saving construction costs, shortening installation time, and making operation easier. This is especially suitable for factories that utilize existing space or want to optimize initial investment.
Specifications of the 20-ton horizontal throat wood chipper.
| Category | Specifications |
|---|---|
| Model | GM-20DC |
| Shredding power | 20 tons/hour (fresh timber) |
| Chopping plate diameter | Ø1,200 x 100 mm |
| Number of knives | 8 knives |
| Knife size | 380 x 145 x 16 mm |
| Knife apron & tray apron | Yes – chopper plate protection |
| Optimal wood diameter | < 250 mm |
| Feeding type | Horizontal feed opening |
| Discharge type | Bottom drain – no need to build a pit. |
| Main engine | 110 kW, 960 rpm |
| Engine brand | SIEMENS – 100% Brand New |
| Origin of the device | GREEN MECH – Vietnam |
Horizontal feed design – A factor that helps save tunnel construction costs.
Unlike traditional wood chippers that use a vertical feed opening and discharge into a pit, horizontal-throat wood chippers are designed with a horizontal feed opening, allowing the machine to be placed directly on the factory floor without the need for basement construction or floor excavation. This offers significant advantages in terms of cost and construction time.
Instead of spending tens of millions of dong digging pits, building retaining walls, pouring reinforced concrete, and strengthening the material discharge system as with bottom discharge machines, users only need to prepare a flat surface, then connect a conveyor belt or horizontal feeder to operate immediately. This is an extremely practical advantage, especially for factories that reuse old foundations or do not want to invest heavily in infrastructure.
Furthermore, this design facilitates smoother operation, reduces operational risks, simplifies maintenance, and enhances worker safety – factors of great importance to wood processing factory owners in the context of increasingly optimized operating costs.
Wood chipper machine!
Outstanding advantages of the 20-ton horizontal throat wood chipper.
GREEN MECH’s 20-ton horizontal throat wood chipper machine stands out thanks to its powerful performance and optimized design for large-scale wood processing plants.
With a capacity of 20 tons/hour, a chipping drum diameter of Ø1,200 mm, and a system of 8 large cutting blades, the machine effectively processes fresh timber and round logs with a diameter of less than 250 mm – meeting the needs for both wood chip production and biomass pellet production.
A notable advantage is the horizontal feeding design – allowing the machine to be placed directly on the factory floor, eliminating the need for a discharge pit like traditional shredders, thus saving construction costs, enabling faster installation, and facilitating convenient operation using conveyor belts or forklifts.
In addition to its robust mechanical components, the machine is equipped with an intelligent electrical control system, including an INVT inverter and a function that automatically adjusts the wood feed rate according to the motor load, ensuring stable operation, preventing overload, and extending the lifespan of the chipping blades.
The control panel supports pre-installed connections to the material feeding and discharging conveyors, and incorporates features such as phase and current protection, an emergency stop button, and a real-time power consumption measurement system – essential for controlling operating costs.
Another notable feature is the use of a brand-new 110kW SIEMENS motor, ensuring stability and high performance in continuous operation. The entire system is manufactured and assembled in Vietnam by GREEN MECH – making it easy for customers to maintain, replace parts, and receive timely technical support.
With these advantages, the GM-20DC is not only a powerful device in terms of capacity but also an optimal solution in terms of investment and operating costs for the wood processing industry today.
Contact to buy a machine that crushes wood into sawdust
We would like to sincerely thank our readers for taking the time to read this article about industrial wood crushers at GREEN MECH.
We hope this article has provided enough information and helped customers better understand the product as well as why they should choose to buy a wood crusher at GREEN MECH.
In particular, we look forward to cooperating and providing quality products to customers. With experience and professionalism, we are committed to providing the best products, reasonable prices and the best after-sales service.
GREEN MECH Vietnam specializes in manufacturing and supplying sawdust crusher from small scale to export. Any need for advice on investment in wood chipper machine, please visit the website: biomass.vn or contact Hotline (Zalo): +84 935 940 886 or call center: +84 941 108 8888 or leave information in the form, we will contact you right away.
Once again, we sincerely thank you for your interest in our products. Wishing our customers good health and success in work!
